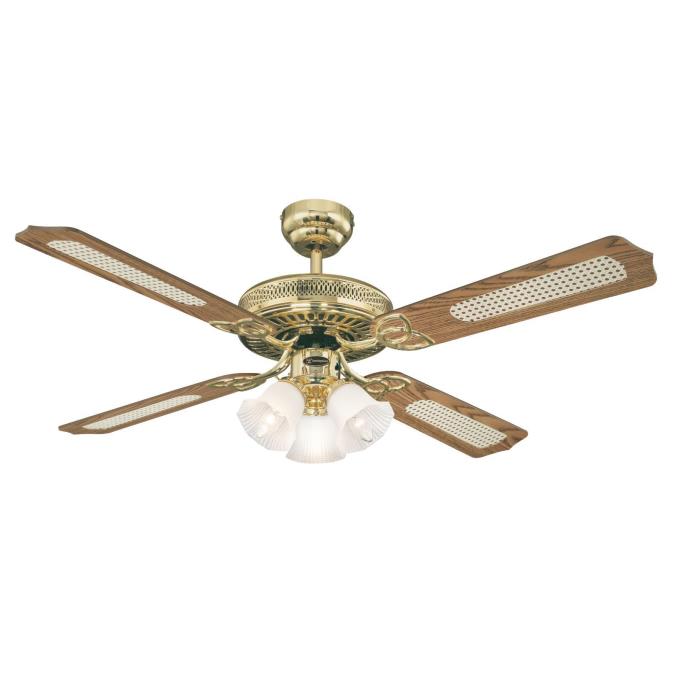

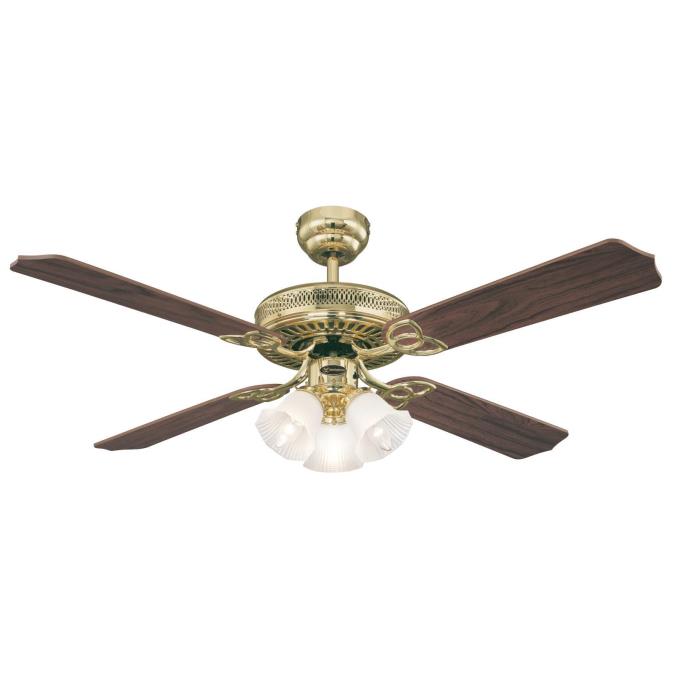

Monarch Trio 132 cm/52-inch Reversible Four-Blade Indoor Ceiling Fan

Monarch Trio 132 cm/52-inch Reversible Four-Blade Indoor Ceiling Fan

Polished Brass Finish with Three-Light Frosted Glass


No.7817140
Blade MaterialMDF
Primary Blade FinishOak with Cane
Secondary Blade FinishMahogany
Blade Pitch (in degrees)11
Bulb(s) IncludedN
MotorSilicon Steel Motor 153mm x 15mm
Capacitor TypeDual
Mount TypeDual Mount System
Motor HousingPolished Brass
Reverse AirflowY
Lead Wire Length (cm)15 cm
Slope Angle (in degrees)18
Switch Housing Cap IncludedN
A) Top of Canopy to Bottom of Blade (cm)29
B) Top of Canopy to Bottom of Switch House (cm)38
C) Top of Canopy to Bottom of Canopy (cm)6,2
D) Width of Motor Housing (cm)28
E) Width of Canopy (cm)13
F) Top of Canopy to Bottom of Glass (cm)43
CFM (High)163
CFM/Watt (High)3
Watt (High)59
RPM (High)175
Amp (High)0,25
CEY
GSY
RoHsY
Blade Length (inches)52
Fan Width (inches)52
Fan Size (cm)132
The original

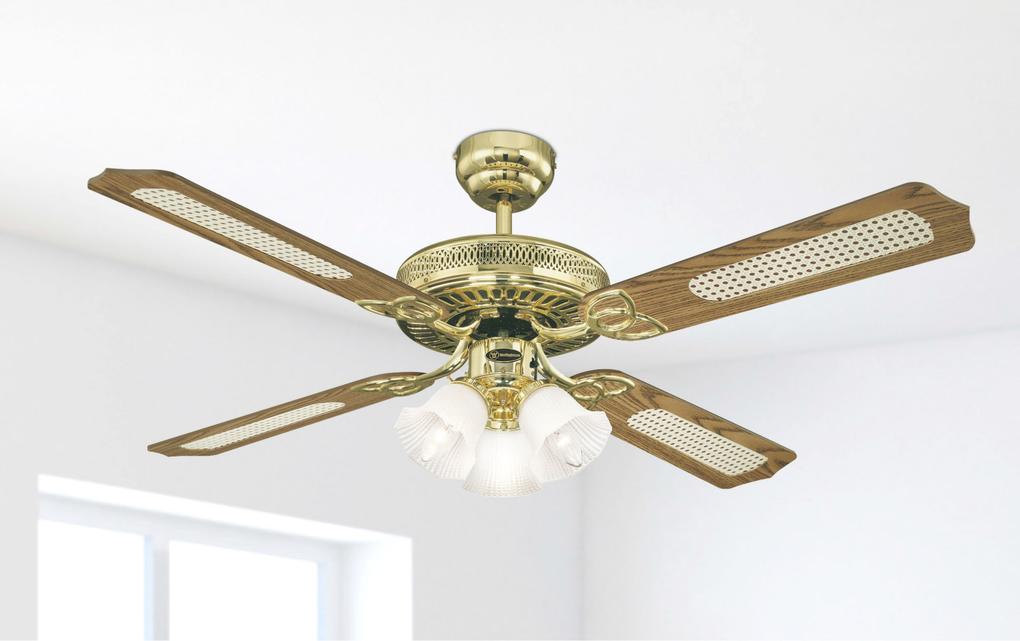

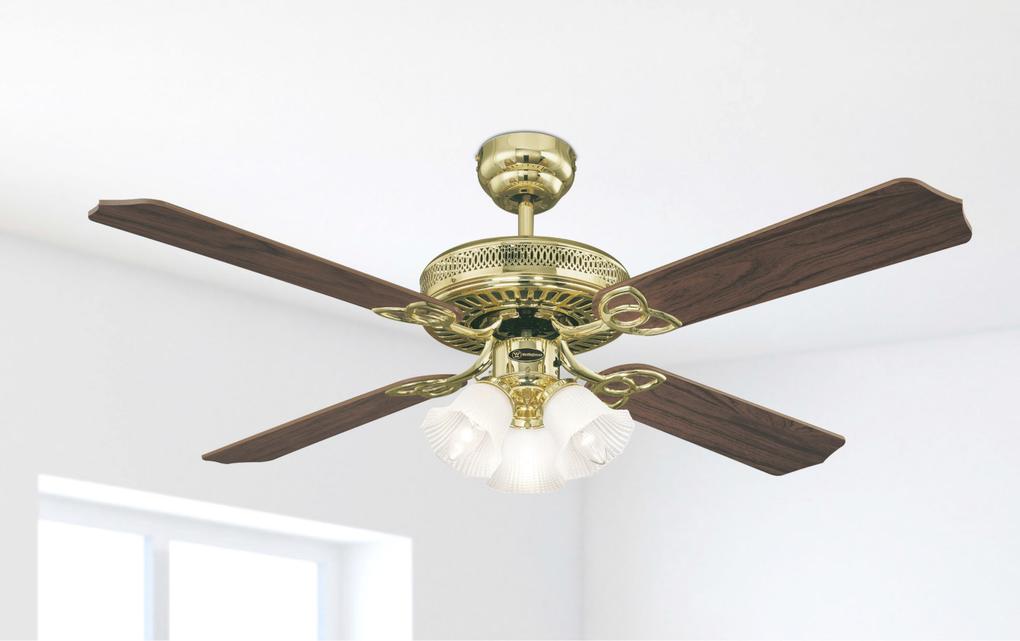

The design of the Westinghouse Monarch Trio ceiling fan is pure tradition. The design in polished brass, the decorative 3 light fixture and 4 reversible blades in oak with rattan and mahogany give the Monarch Trio its high quality historic design.

A durable and quiet AC motor made of cold-rolled steel ensures comfort throughout the year: a comfortable cool climate in summer and optimum heat distribution during winter operation.

Can be equipped with either a remote control or a wall switch.

Item number: 7817140

Recommended for rooms from 25 - 30 sqm



CHARACTERISTICS
  • 132 cm ceiling fan for indoor use
  • AC motor
  • Three speed levels
  • Summer and winter switch
DESIGN

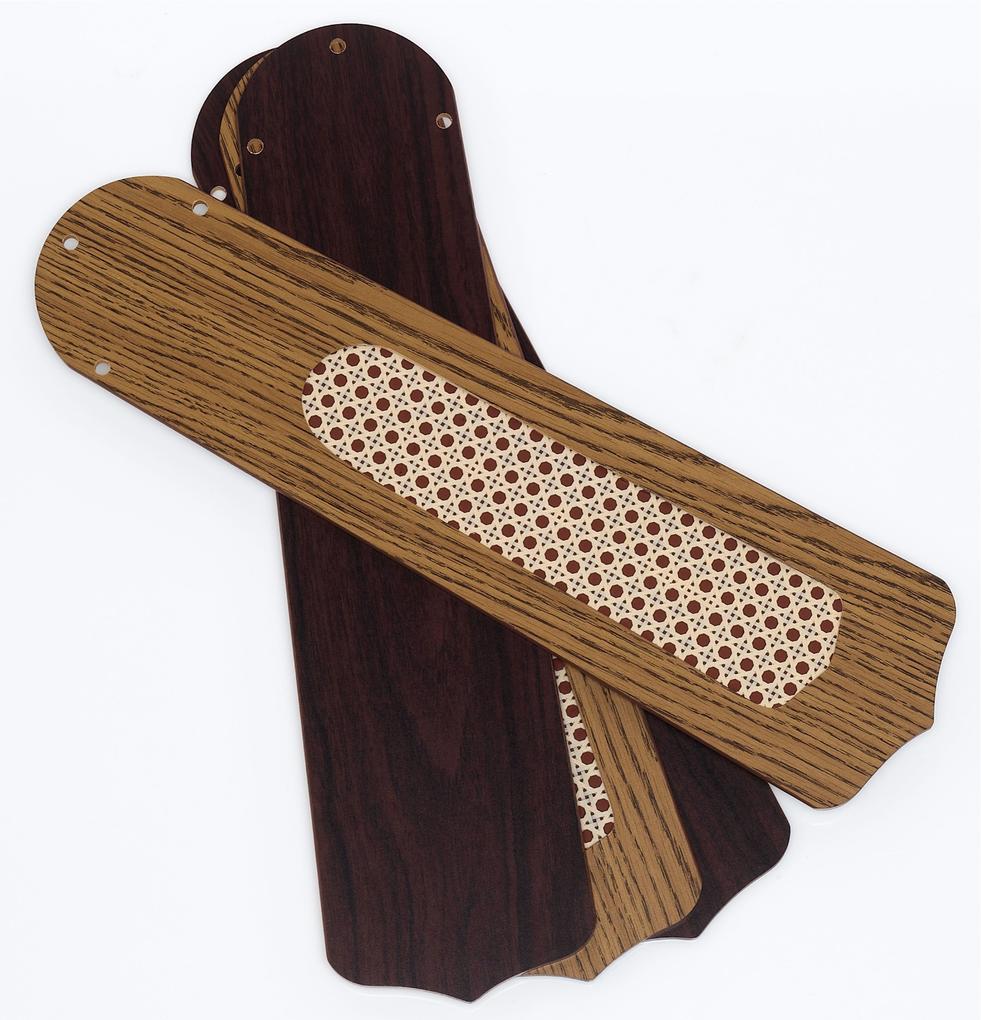

  • Four reversible blades in oak with rattan and mahogany, both patterns included
  • Housing in polished brass
  • Three frosted glass lights
  • Pull switch
  • Remote control or wall switch can be added
ASSEMBLY
  • Ideal for rooms 25 - 30 sqm
  • Can be installed with or without a down rod (included)
  • Additional down rod lengths are available
EFFICIENCY
  • 58 watts at highest speed
  • 175 rpm at the highest level
GUARANTEE
  • 10 year extended manufacturer's warranty on the motor
