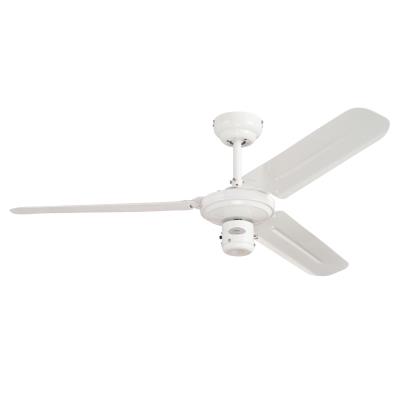

Industrial 122 cm/48-inch Thee-Blade Indoor Ceiling Fan

Industrial 122 cm/48-inch Thee-Blade Indoor Ceiling Fan

White Finish with White Steel Blades


No.7833740
Blade MaterialSteel
Primary Blade FinishWhite
Blade Pitch (in degrees)11
Bulb(s) IncludedN
MotorCold Rolled Steel Motor 172mm x 10mm
Capacitor TypeDual
Mount TypeDown Rod Only
Motor HousingWhite
Reverse AirflowY
Lead Wire Length (cm)20 cm
Slope Angle (in degrees)18
Switch Housing Cap IncludedN
A) Top of Canopy to Bottom of Blade (cm)24
B) Top of Canopy to Bottom of Switch House (cm)37
C) Top of Canopy to Bottom of Canopy (cm)6,2
D) Width of Motor Housing (cm)20
E) Width of Canopy (cm)13
CFM (High)158
CFM/Watt (High)3
Watt (High)47
RPM (High)268
Amp (High)0,22
CEY
GSY
RoHsY
Fan Width (inches)48
Fan Size (cm)122
The commercial classic

The Westinghouse Industrial Series ceiling fan is both a proven top seller as well as a design classic. This model is often used in bars, restaurants or hotels and receives high marks for its white housing surface and white wings of steel.

An economical, reliable and virtually silent AC motor made of cold-rolled steel ensures year-round comfort in your commercial or private rooms: a comfortable cool climate in summer and optimum heat distribution during winter operation.

Can be equipped with either a remote control or a wall switch.

Item number: 7833740

Recommended for rooms up to 20 sqm



CHARACTERISTICS
  • 122 cm ceiling fan for indoor use
  • AC motor
  • Three speed levels
  • Summer and winter switch
DESIGN
  • Three blades in white steel
  • White housing
  • Wall switch
  • Remote control or wall switch can be added
ASSEMBLY
  • Ideal for rooms up to 20 sqm
  • Must be installed with a down rod (included)
  • Additional down rod lengths are available
EFFICIENCY
  • 52 watts at highest speed
  • 240 rpm at the highest level
GUARANTEE
  • 10 year extended manufacturer's warranty on the motor
How to Buy

Can be purchased through many online and retail stores.
